Discontinued

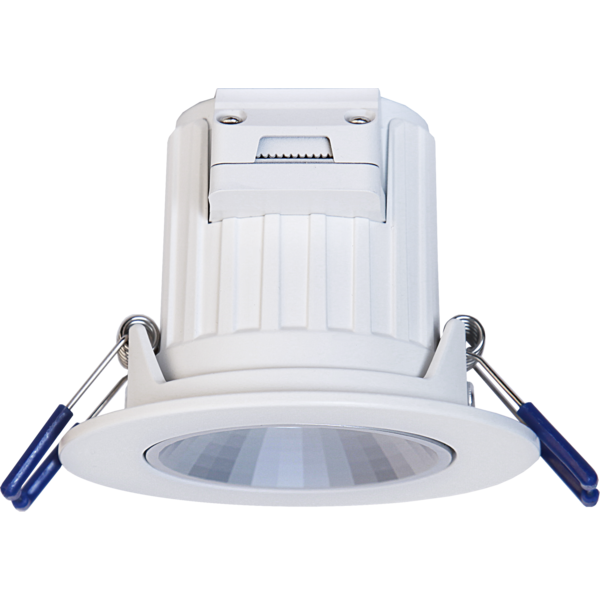

LED Downlight Integra
366-01
Colour
White
Light Source Color
Warm white
Width/length (cm)
8.60
Height (cm)
5.95
Depth (cm)
8.60
Area Of Use
Indoors
Light sources
1
Number of light points per light source
3
Light Source Type
LED
Color Temperature (K)
3000
Dimmer Compatibility
No
Luminous Flux (lm)
260
Color Rending Index (CRI/Ra)
80
Beam angle
38°
Luminous flux in a 120° cone (lm)
245
Luminous flux in a 90° cone (lm)
230
Luminous Intensity (cd)
485
Colour Consistency (SDCM)
<6
Average Life Time (h)
25000
Operational Temperature Min/Max
-20° - +40°
Power Factor
0.500000
Light Source Current (mA)
37
Light Source Effect (W)
4.5
Light Source Voltage (V)
220-240VAC
Voltage
230V AC
Energy Class
G (2019/2015)
EPREL Number
1513527
IP Classes
IP20
EAN barcode
7391482004475
E Number
7463111
Assembly Instruction
Energy Label Big
Energy Label Small
Old Energy Label
